Automated CICD Jenkins with pre build SonarQube and OWASP

Technical Usage Manual – Automating Jenkins AMI with SonarQube and OWASPJenkins offers a simple way to set up a continuous integration and continuous delivery environment for almost any combination of languages and source code repositories

Jenkins achieves Continuous Integration with the help of plugins and allows the integration of various DevOps stages. In this deployment scenario if you want to test and build your application, also the same development code should go through multiple stages of verification manually or with verified softwares to pass the defined metrics, the scenarios will be achieved with the help of installing plugins for that software.

Here, we are using GitHub as the repository for source code, connecting Jenkins with SonarQube Scanner for code test and OWASP for security scanning of the built image after deployment.

Appropriate docker plugins and necessary tools such as Email extensions will be integrated to Jenkins and allow users to have a seamless experience in UI.

Yobitel audits and validates that its Cloud-Native Stacks are stable, secure, and scalable, meeting production-grade standards with best practices. Yobitel stacks to ensure a few click deployments over the instance with version upgrade resilience.

Abstract

Jenkins with pre-built SonarQube and OWASP is available for code analysis and application testing. You can configure your pipeline using our pre-built options, including SonarQube and OWASP. We offer pre-configured pipelines that support code testing in any language and automated deployment of code in AWS ECS Fargate with ECR image. These pipelines are designed for SMEs and startups, facilitating continuous testing and deployment in ECS.

Technical Usage Manual Prerequisites

1. Credentials - Add AWS Access Key & Secret Key, Github Fine-Grained Access Token, Email credentials with Jenkins

2. Configuring Jenkins

1.Credentials:1.1 AWS Access Key & Secret Key

Obtain the AWS Access Key & Secret Keys from your AWS Account 1.2.Github Fine Grained Access Token

You can get Github Fine Grained Access Token from Developer Settings on your

Github account.

1.3.Email Credential

Email credential must be Generated from App Password on Google.

1. Configuring Jenkins:

2.1 Jenkins EC2 instance Public IP is available in the CloudFormation stackOutputs, and connect Jenkins dashboard with (Eg: 18.212.180.159:8080).

2.2 Login to Jenkins

username: admin

password: use the command cat /var/lib/jenkins/admin_password.txt in the AWS CLI.

2.3 Go to Manage Jenkins >> Security>>User, Create an New User with

Credentials and Login as User.

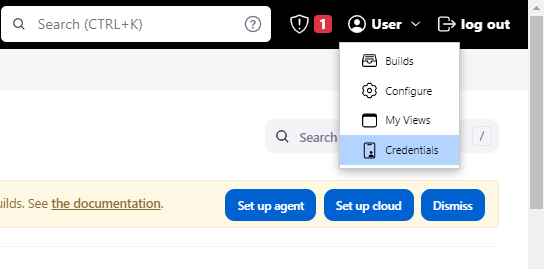

2.4 Click Credentials under the User

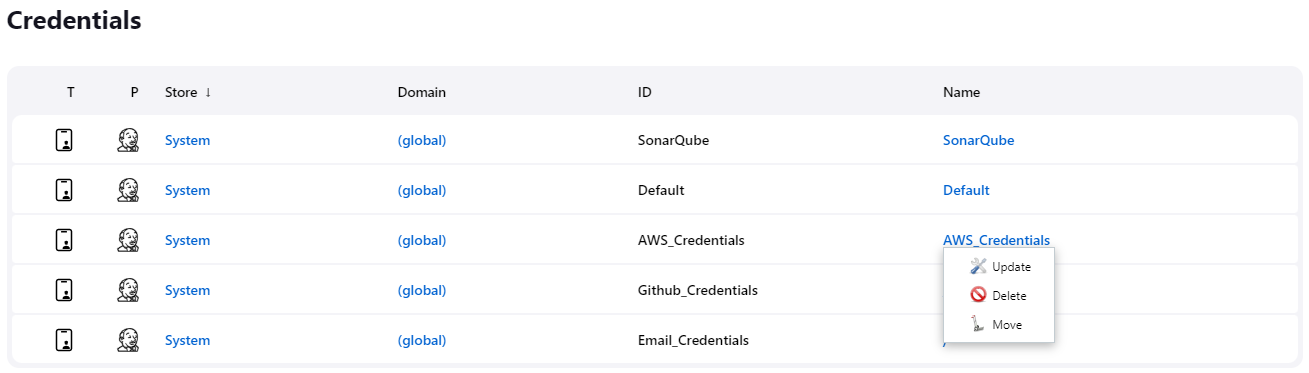

2.5 Update the AWS Credential, GitHub Credential, and Email Credential with your

own.

2.6 Go to Manage Jenkins >> System >>Jenkins Location, update your Jenkins

Instance Public IP in the Jenkins URL (Eg: http://:8080).

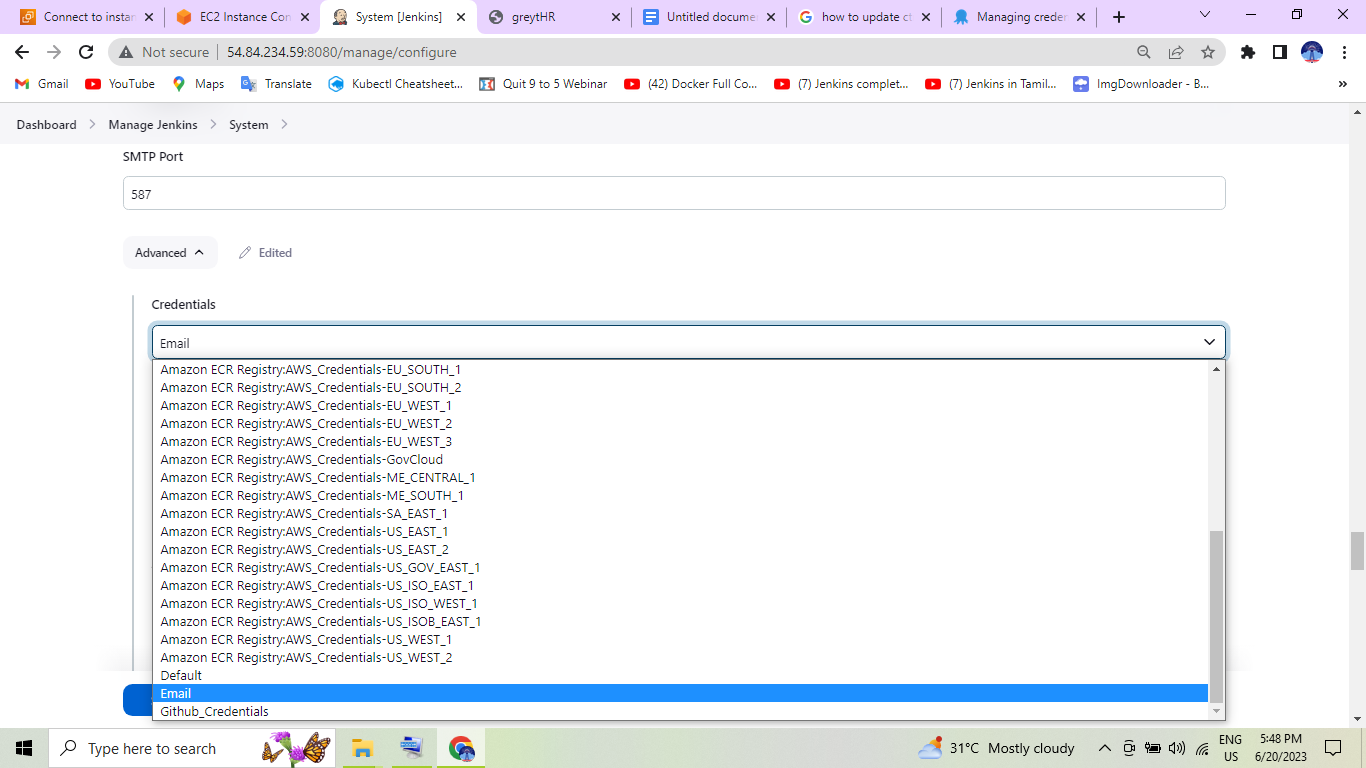

2.7 Go to Extended Email Notification and choose the Advanced, choose your

Email Credential.

2.8 Choose to Email Notification >> Advanced, Select the Use SMTP Authentication and Enter User Name and Password. Finally Apply and Save the

configuration.

2.9 Go to Dashboard

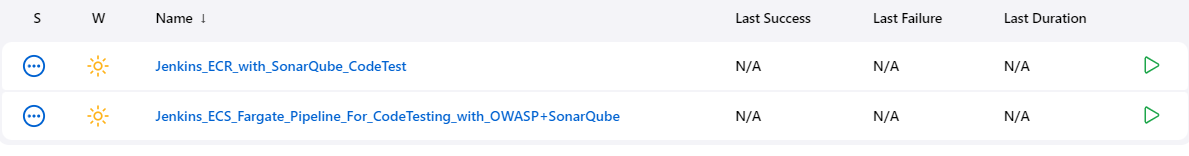

On the Jenkins Dashboard, preloaded pipelines will be shown for different methods of CICD operations.

Available Pipelines

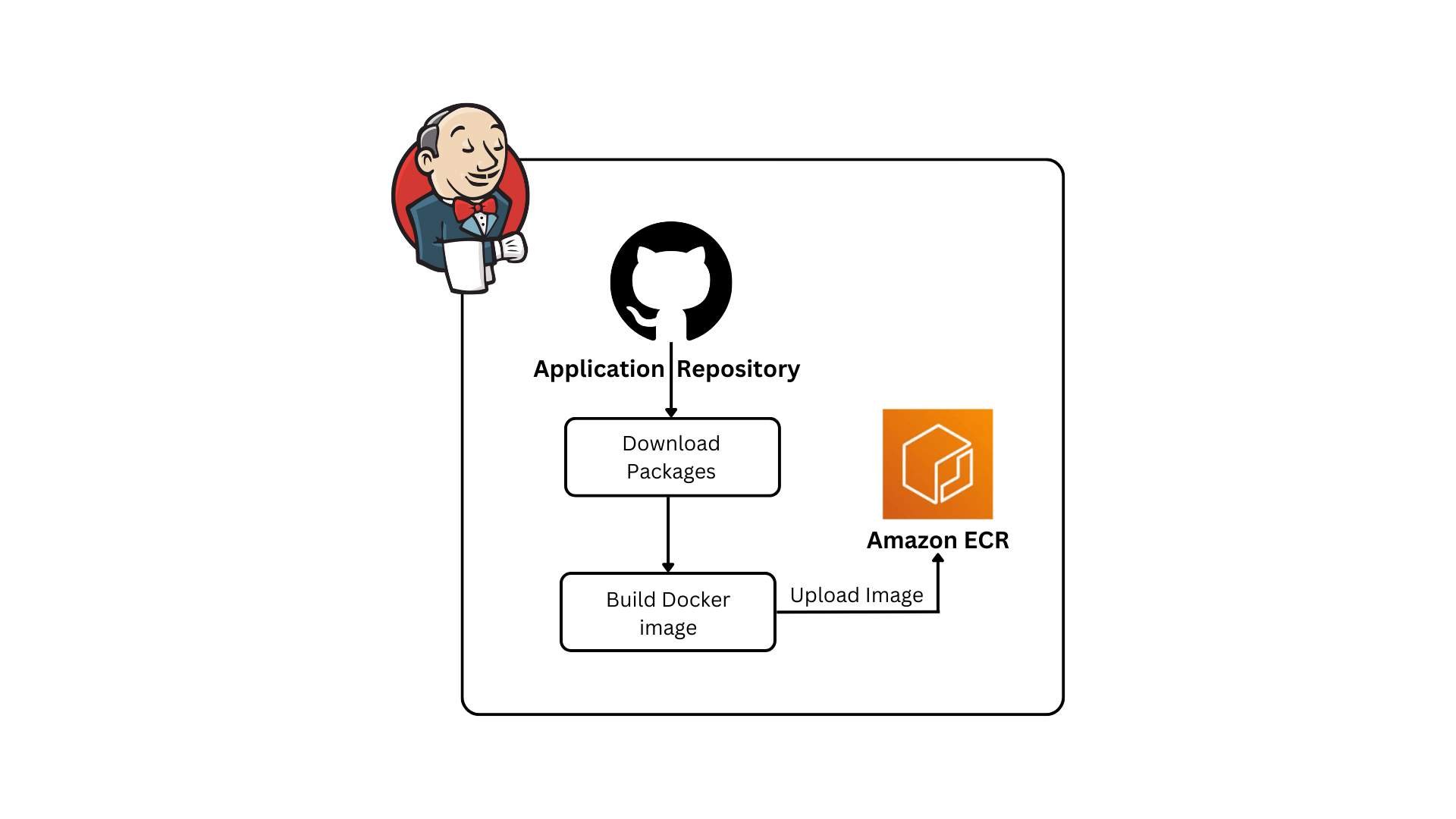

Jenkins_ECR_with_SonarQube_CodeTest: Automated CICD Pipeline to analyse source code using SonarQube, build it as docker image and push into ECR.

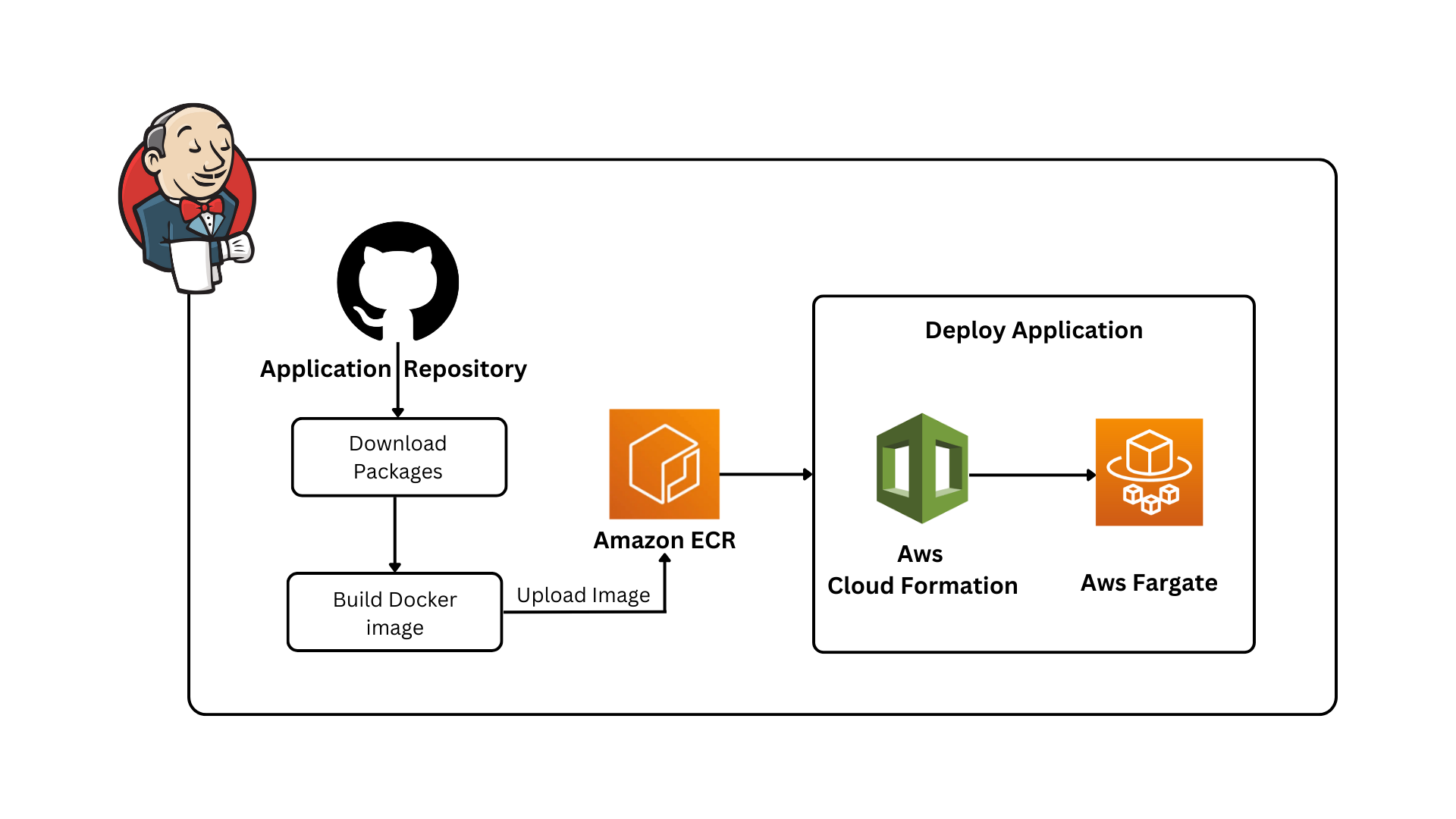

Jenkins_ECS_Fargate_Pipeline_For_CodeTesting_with_OWASP+SonarQube: Automated CICD Pipeline to analyse source code using SonarQube, build it as docker image and push into ECR. Deploy the Application build Image in AWS ECS Fargate from ECR repository and analyse the application using OWASP.

2.10 Choose the Pipeline which you need and ▶ to Schedule a Build.

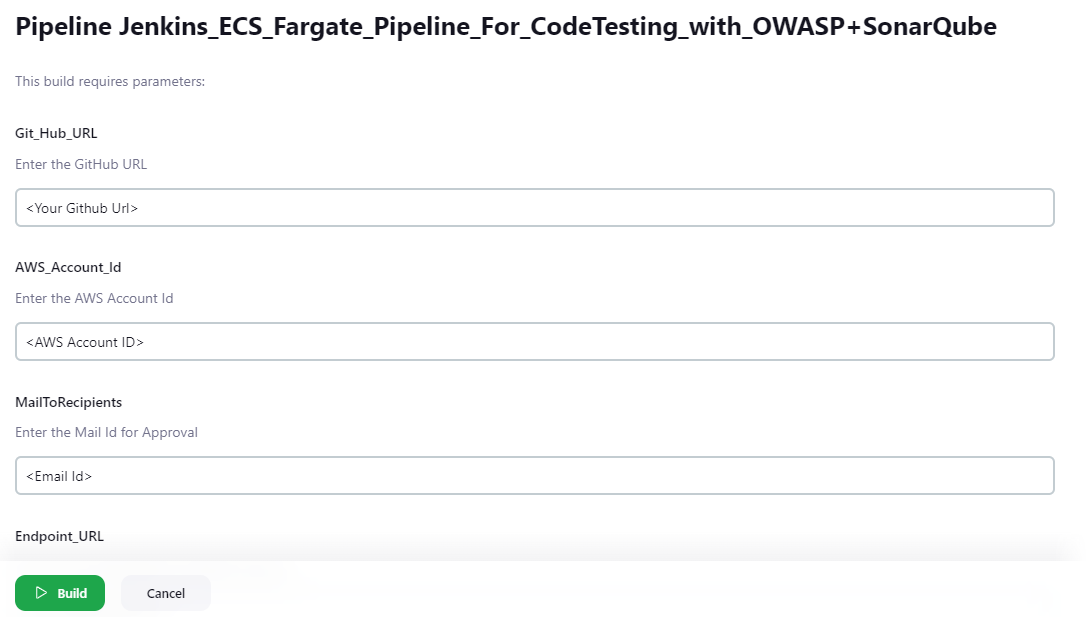

2.11 Enter the required parameters in your pipeline to build.

(Note: Some parameters are given as default, If you need you can change it by

your own)

Appendix

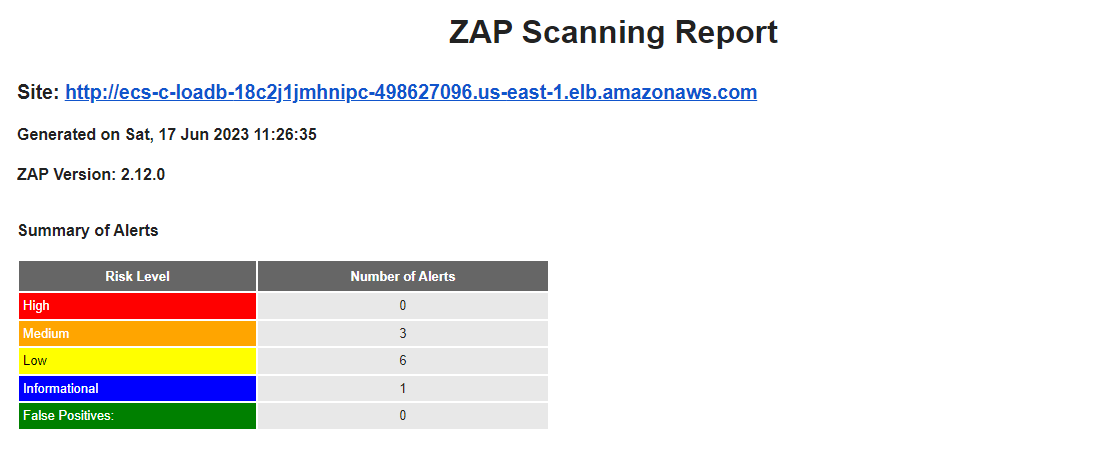

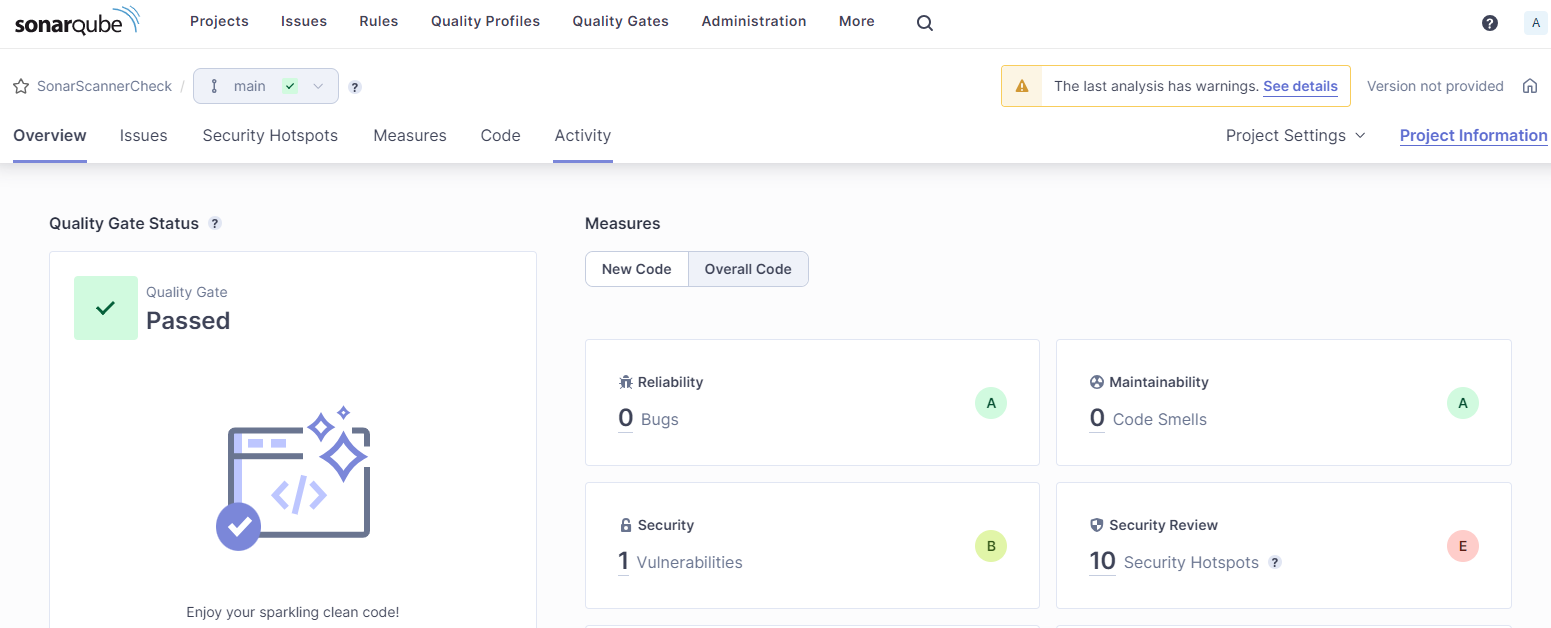

While building these pipelines you will receive the SonarQube and OWASP ZAP Report which will look like below shown.

Note: These Pipelines consist of several stages for Continuous Integration and Continuous Deployment with Sonarqube and OWASP which were given by default. In addition, we configured a mail service that will send the code analysis report and OWASP Zap report to the respective email you provided. Our pipeline supports any type of code to analyze and deploy your application in ECS Fargate. For further improvement of the pipeline, you can contact our support team.

Insights & Support

• For further details about Jenkins and its uses, refer to Jenkins website
• We will do our best to respond to your questions within the next 24 hours in business days. For any technical support or query, you can drop a mail to support@yobitel.com.
• Check our other Containerized Cloud-Native application stacks as EKS, ECS, Cloud Formation, and AMI - Amazon Machine Images in AWS Marketplace.
